Manifold. Component. Carb rubber. Flanged. 35mm push fit. 27mm choke. 48mm bolt centers. VM24 or VM26mm. Mikuni

Manifold. Component. Carb rubber. Flanged. 35mm push fit. 27mm choke. 48mm bolt centers. VM24 or VM26mm. Mikuni
  • Click to enlarge

£10.00 £8.33 ExVAT

Product Code: 3038

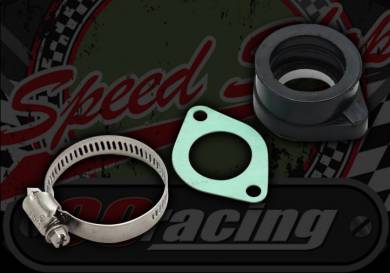

Manifold. Component. Carb rubber. Flanged. 35mm push fit. 27mm choke. 47mm bolt centers. VM24 or VM26mm. Mikuni

This manifold is for use with stock manifolds that have a bolt on carb fixing to convert to a 35mm push fit bore size 28mm.

Specifications. Rubber:

  • 28.5mm Throat
  • 33mm Aperture for Carb output
  • 48mm Fixing holes center to center
  • M6 Threaded



Product improvement notice:

We have removed the rubber seal from this kit and now supply the kit with a gasket instead. This improves reliability of product and helps avoid distortion.

You only need to tighten so the carb doesn’t turn, any tighter you will split the rubber.

Option on clip

These come with a Chinese made clip, not the best but they work, with some of the smaller stub carbs like the PE26 you are better off using the up rated German made Zebra clip 32mm to 50mm pulls up more positively and round.



Product Code 3038
Condition New
Weight 0.05Kg
