Manifold. Chaly 26mm 125cc and up

Here is a substitute tall manifold for the chaly when running a larger engine than 110.

Fits in most cases, you may have to elongate the mounting holes for a bit more clearance  subject to engine.

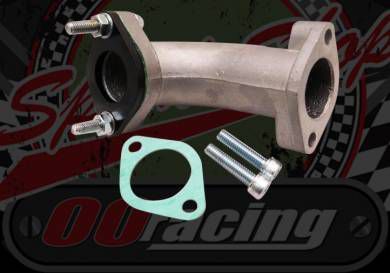

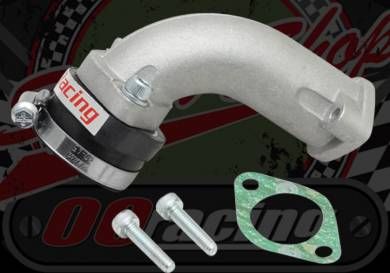

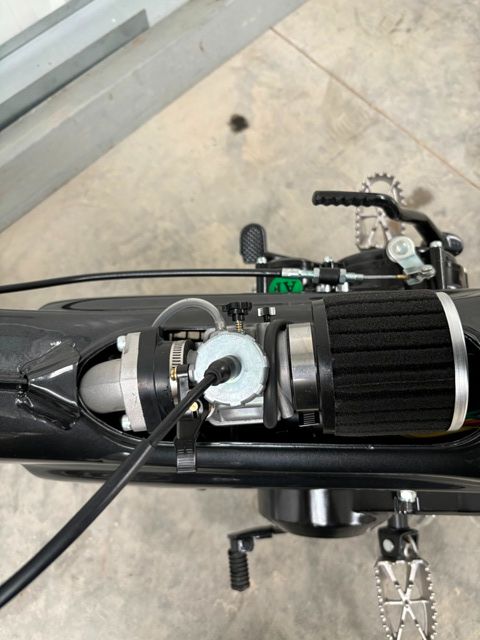

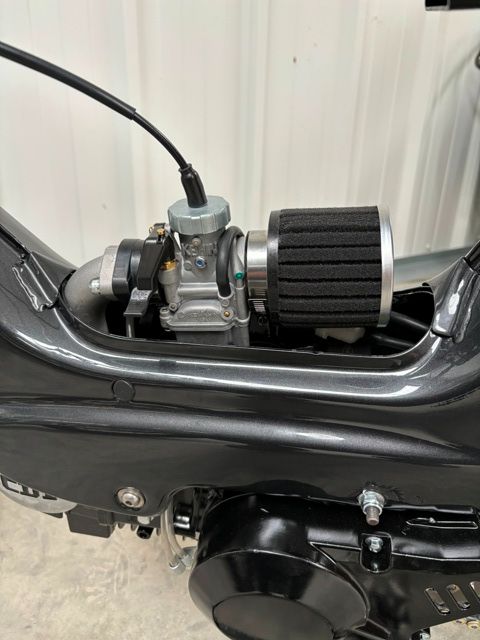

Please see photos

Manifold. 26mm. 105mm TALL.

Kit Includes:

• Manifold 105mm
• Heat spacer  or Push fit rubber (Option)
• Gasket Head end & 2 x 10mm spacer
• Bolts

Specifications. Manifold:

• 24.5mm Aperture Carb side.
• 24.5mm Aperture at head end.
• 105mm height (overall)
• 45mm fixing to Cylinder head. center to center
• 48mm Fixing to Carb. Center to center.
• Straight back

Specifications. Push fit rubber:

• 35mm Aperture for Carb fitment
• 27mm Throat
• 48mm Bolt centers
