Oil feed for primary clutched engines

Oil feed for primary clutched engines
  • Click to enlarge

£4.00 £3.33 ExVAT


Product Code: 8206

Oil feed for primary clutched engines

Encourages oil to travel to the crank shaft from the clutch cover.

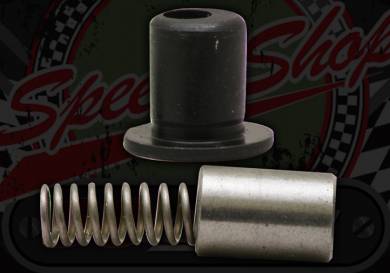

3 parts to this kit:

  • Spring (left inimage)
  • housing (right in image)
  • Top hat (Top in image)



Specifications:

  • 17.5mm length spring
  • 5.5mm diameter spring
  • 14.7mm Length Top hat
  • 15.7mm diameter rim Top hat
  • 10mm Diameter body of Top hat
  • Off set hole in base of top hat. (required)
  • 12mm length spring retainer
  • 8mm diameter spring retainer



Product Code 8206
Condition New
Weight 0.05Kg
