Rear quad Axle complete 6” wheels for project build up to 125cc

Rear quad Axle complete 6” wheels for project build up to 125cc
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

£170.40 £142.00 ExVAT

Product Code: 1907

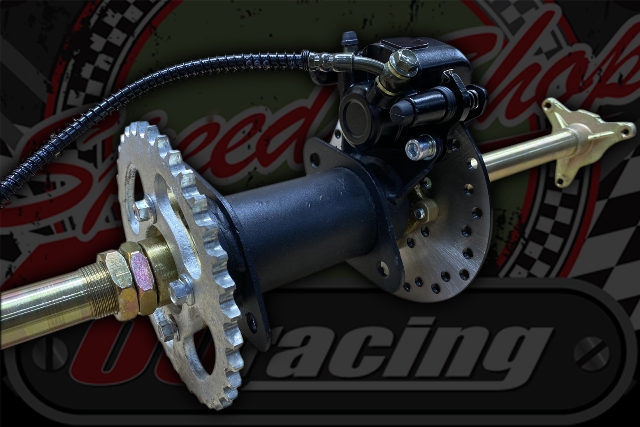

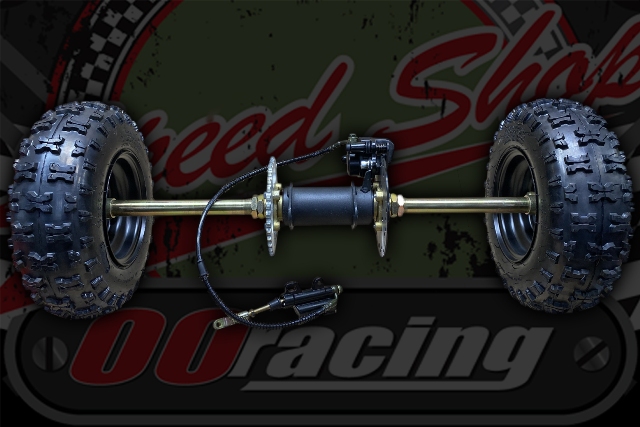

Rear end complete 6” wheels for project build up to 125cc

For matching swinging arm see part number 5606

We’ve got these in to prevent the usual head ache when trying to build one out of part off the net, to find out nothing fits!

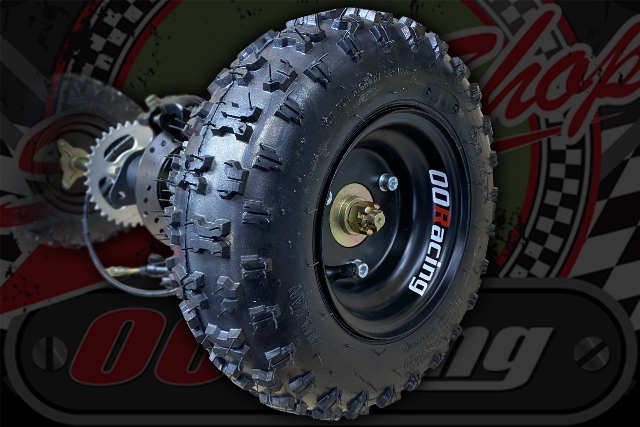

Tyres  13x5.00-6 HUAJIAN

3 Bolt M8 wheel bolts

428 pitch sprocket  37T

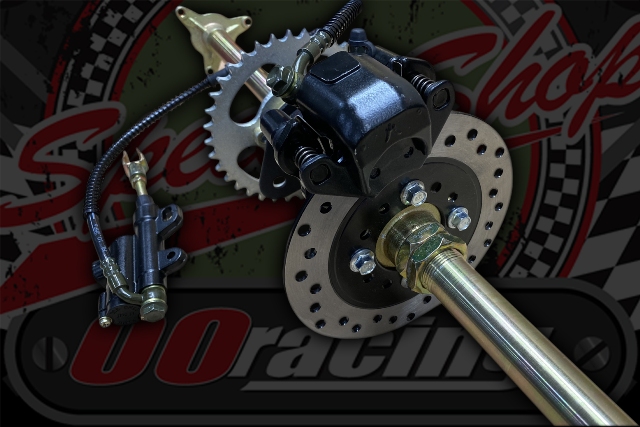

Rear brake disc 157mm

Single pot rear calliper

Brake hose braided 600mm approx

Master cylinder 40 to 50mm M6 mounting centres

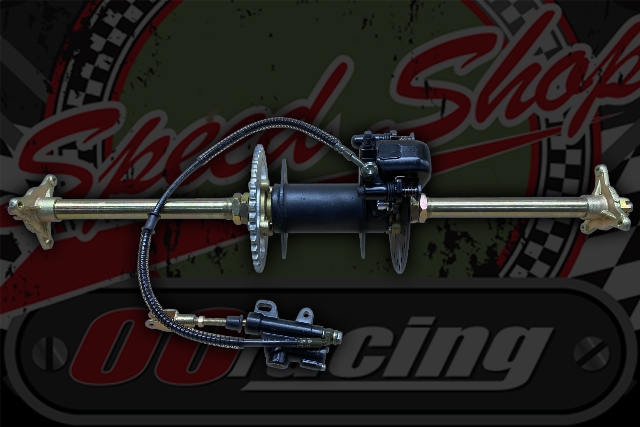

Tapered axle 27mm centre  hub 25mm wheel end

Overall width outside tyres 800mm

Overall inside tyres 580mm

Hub mounting flange width inside 92mm outside 98mm

M10 mounting hole 90mm centres

This would normally go onto a type of swinging arm

Product Code 1907
Condition New
Weight 28Kg
