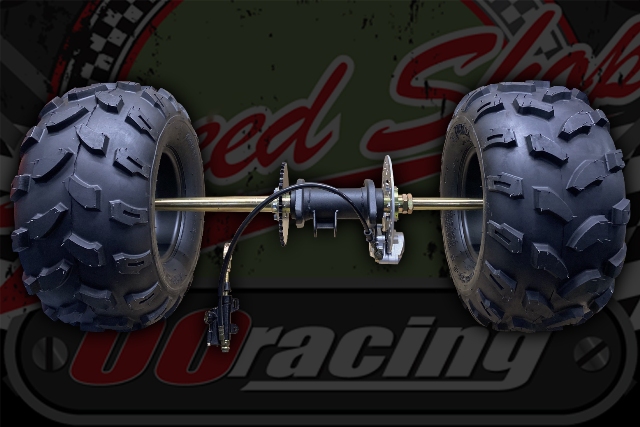

Rear quad Axle complete BIG 8” wheels for project build up to 300cc
For matching swinging arm see part number 5607
We’ve got these in to prevent the usual head ache when trying to build one out of part off the net, to find out nothing fits!

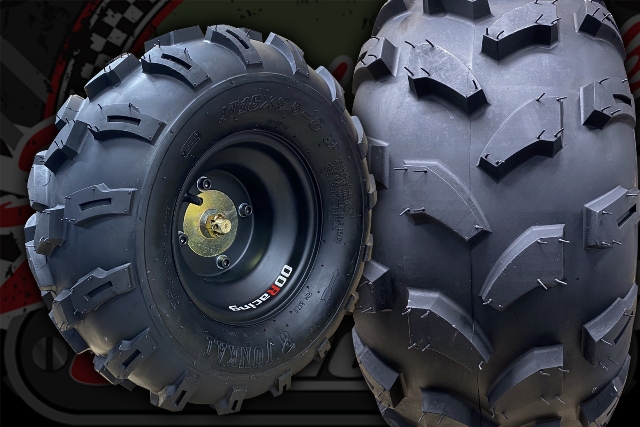

Tyres 18X9.5-8 JUNKAI
4 Bolt M10 wheel bolts

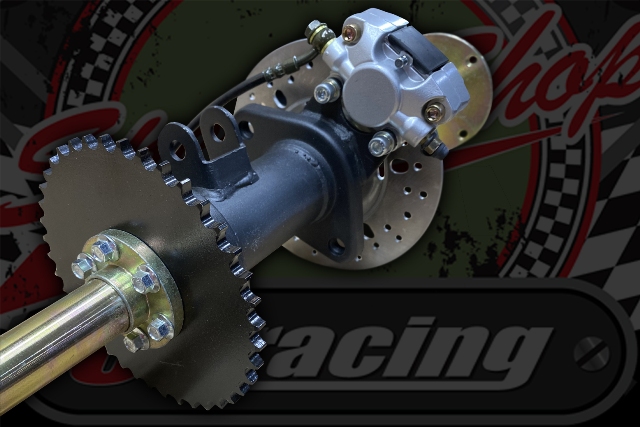

428 pitch sprocket 40T

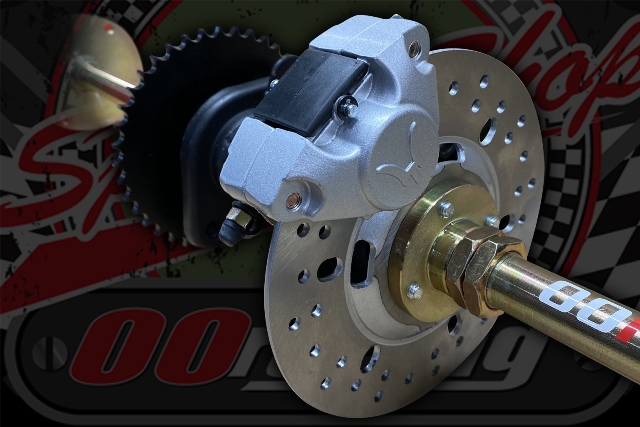

Rear brake disc 190mm
Twin pot rear calliper
Brake hose braided 550mm approx
Master cylinder 40 to 50mm M6 mounting centres

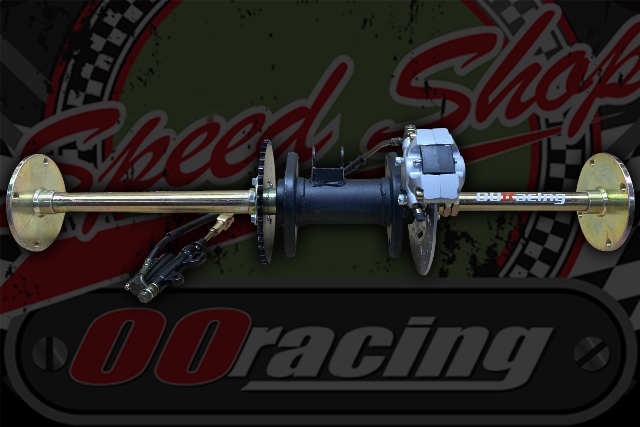

Tapered axle 32mm centre hub 30mm wheel end
Overall width outside tyres 990mm
Overall inside tyres 540mm
Hub mounting flange width inside 122
M10 mounting hole captive M10 1.25 pitch 115mm centres
Has shock mount on top 35mm wide M10
