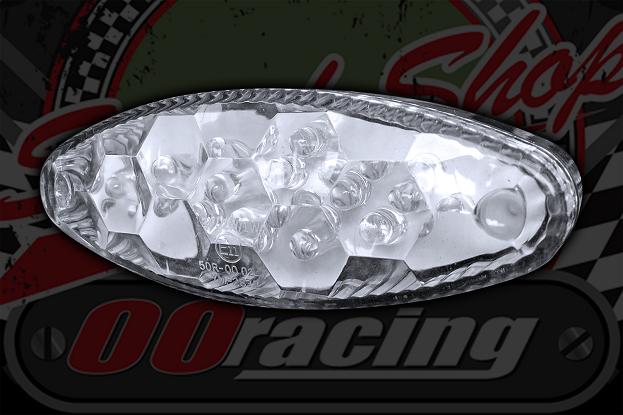

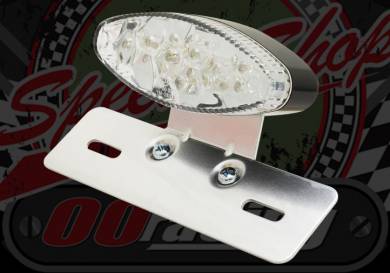

Rear light oval stop tail 12v LED with number plate mount
No number plate light
Bright red when on
Must be used with D/C only charging max voltage 14.8V NOT A/C
Wires
- Yellow = - NEG
- Red = Stop
- Black = Tail
Light sizes
- Width 120mm
- Height 45mm
- E11 approved
Long life for your LED units
LED lights are very reliable in the right environment see below situations that can make them fail
Check the mounting of the unit that it dose not vibrate, check the reve range of you engine as they can vibrate at certain RPM’s. Rubber mount if necessary.
Some bikes also have split lighting circuits A/C / D/C its worth covert to all D/C as A/C current will blow LED units after a short while.
Bracket 2
