Rojo EFI delete kit, EURO 5 De restriction 50 & 125 Skyteam, Bullet, Heritage Monkey DAX ST

Rojo EFI conversion to normal CDI, EURO 5 tuning 50 & 125 Skyteam Monkey DAX ST

Info on the drop downs

1 = Coil colour

2 = CDI silicon protective cover

3 = Switch if you need to restrict the speed you can switch between full power or pre set rev limiter.

Made for the Skyteam 2020 on wards Euro 5 later versions with multi pick up flywheels, this kit comes with replacement single pick up flywheel.

If you have a single pick flywheel you need EURO 4 kit..

A lot of you want to tune your new fuel injected monkey but the limitations of the EFI prevent this. So we have made this kit that will plug and play into the original wiring loom.

Please check that wires in the plugs line up with the correct wires on bike loom

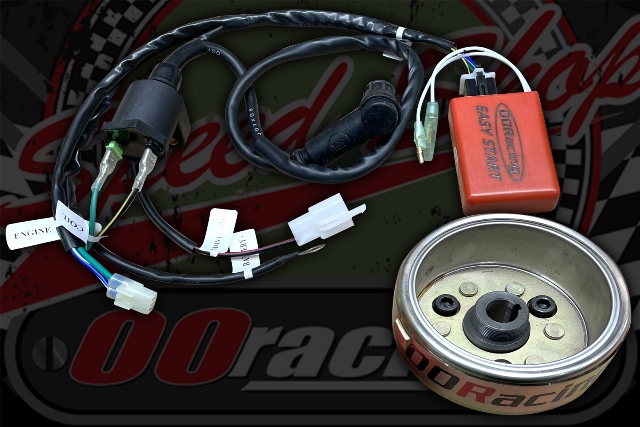

Ignition only kit

1 x Flywheel single pick up

1 x 4 pin D/C CDI (choice of silicone cover and switch)

1 x Micro wiring loom

1 x Performance coil 12V

All prewired with matching plugs to suit the Rojo EFI Skyteam Monkeys

Before plugging in check the wire colours align with the corresponding colours on the loom.

3 pin plug with 1 Black/red wire should align with black on the loom plug.

2 pin plug Green to green Blue/white to Blue/white from stator

Please note the standard Euro 5 fuel tank doesn’t have a fuel tap so you will need to change the tank for a normal carburettor type or Euro 4.
