Sprocket nuts and bolt. Cush drive pin kit. Universal. Will work on ACE rear wheel

Sprocket nuts and bolt. Cush drive pin kit. Universal. Will work on ACE rear wheel
  • Click to enlarge

£14.99 £12.49 ExVAT

This product is currently out of stock


Product Code: 9703

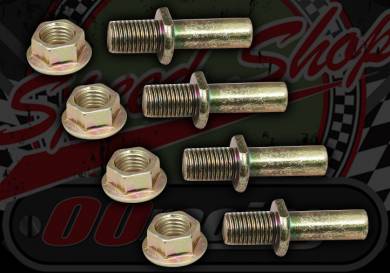

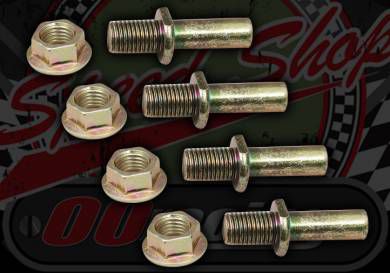

Universal Nut and bolt. set of 4 per order

All steel construction

Sprocket nut and bolt.
or
Cush drive pin kit.

Specifications:

  • All steel construction
  • 42mm Overall length
  • 24mm Lug length
  • 15mm Threaded end
  • 3mm Shoulder flat cut outs on shoulder to clear hubs
  • M10 x 1.25 Pitch Thread




Will work on ACE rear wheel if apporximately 6mm are cut of the lug end. We can also supply the Rear wheel cush drive bush for the Ace



Product Code 9703
Condition New
Weight 0.3Kg
