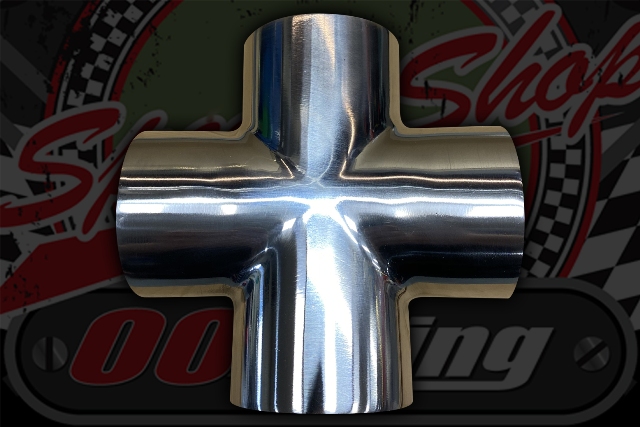

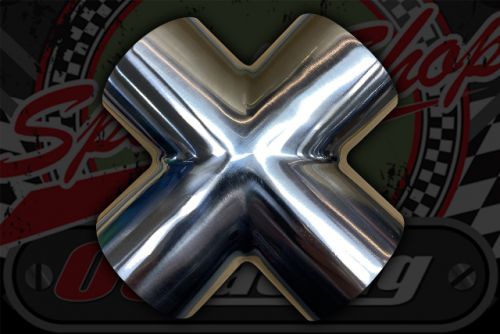

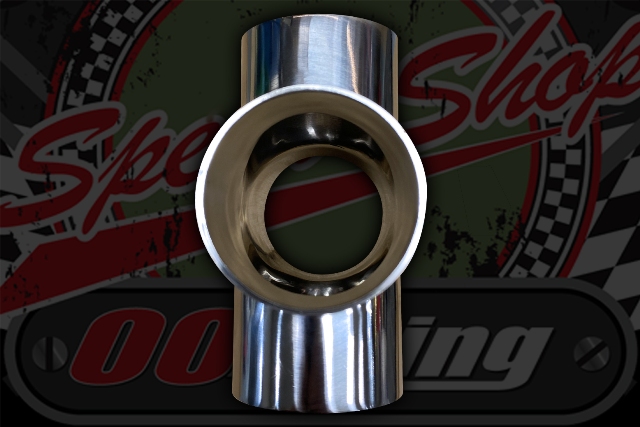

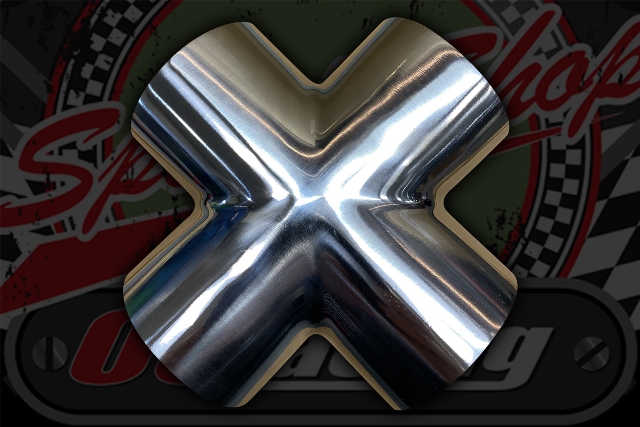

Stainless 304 exhaust/inlet pipe Cross Sizes OD from 19mm to 76mm

Stainless 304 exhaust/inlet pipe Cross Sizes OD from 19mm to 76mm
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

£8.38 £6.98 ExVAT

Product Code: 4563

Stainless 304 exhaust/inlet pipe bends Cross over Sizes from 19mm to 76mm

We do other bends, fittings and straight pipe in our main OORacing store (stainless bends)

We stock bends in degrees 30 45 60 90 180

T Pieces

Y Pieces

All sizes are OD (outside diameter)

Wall thickness 1.5mm up to 51mm and 2mm over.

304 grade is nice to weld less brittle than the 316 grade.

There a nice tight bend with a clean cut so you can but weld close connections to get really tight turns

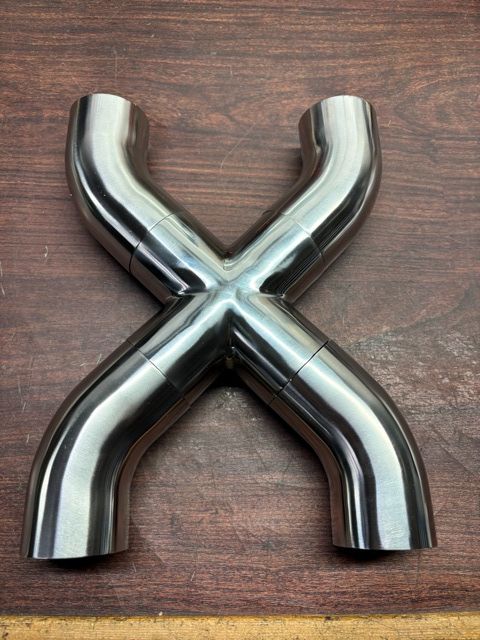

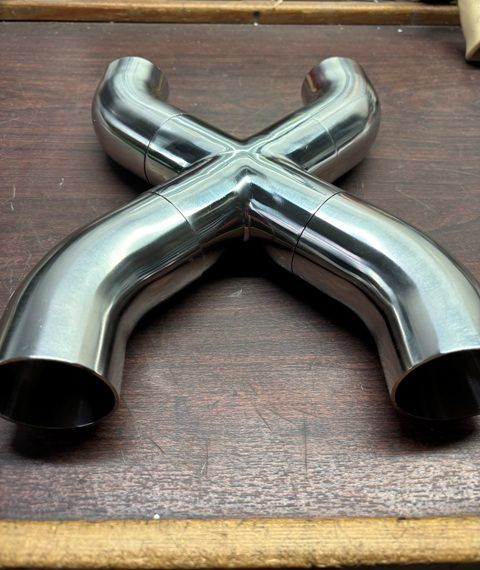

We decided to stock these really useful polished 304 grade bends for custom exhausts or inlets, and water pipe systems.

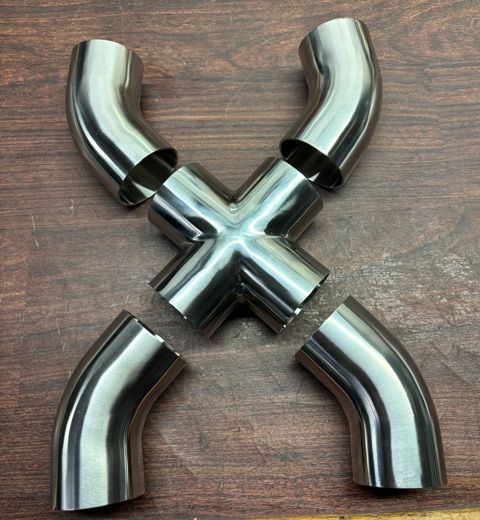

You can simply use insulation tap to hold your bends to the straight pipe to mock up your system, holds well so you can take it to your local Tig welder and get him or her to cut a 10mm strip out your tape to tack weld in 2 places before removing all the tape.

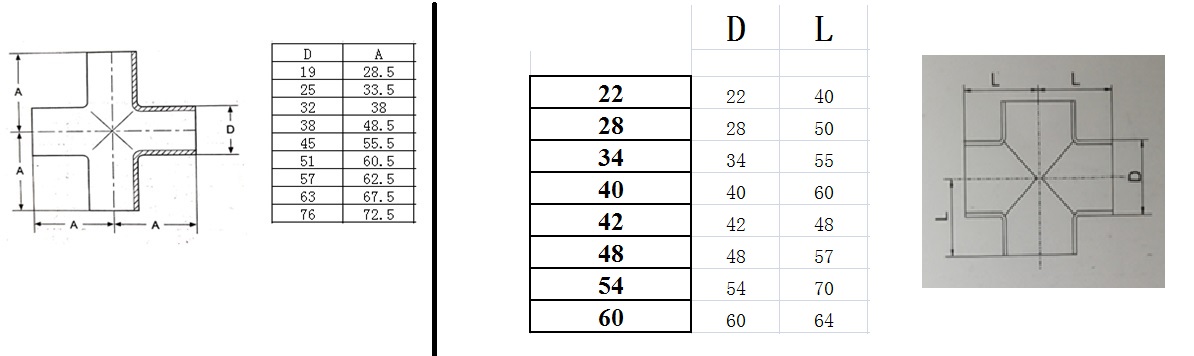

Sizes we stock below sizes

19mm 3/4"

22mm 7/8"

25mm 1”

28mm 1 1/8”

32mm 1 ¼”

34mm 1 11/32”

38mm 1 ½”

40mm 1 37/64”

42mm 1 21/32”

45mm 1 ¾”

48mm 1 7/8”

51mm 2”

54mm 2 1/8"

57mm 2 1/4"

60mm 2 23/64"

63mm 2 31/64"

76mm 2 63/64"









Product Code 4563
Condition New
Weight 0.06Kg
