Gen. Stator kit. SS3+. 3 Phase

Gen. Stator kit. SS3+. 3 Phase
  • Click to enlarge

£49.99 £41.66 ExVAT

Product Code: 9585

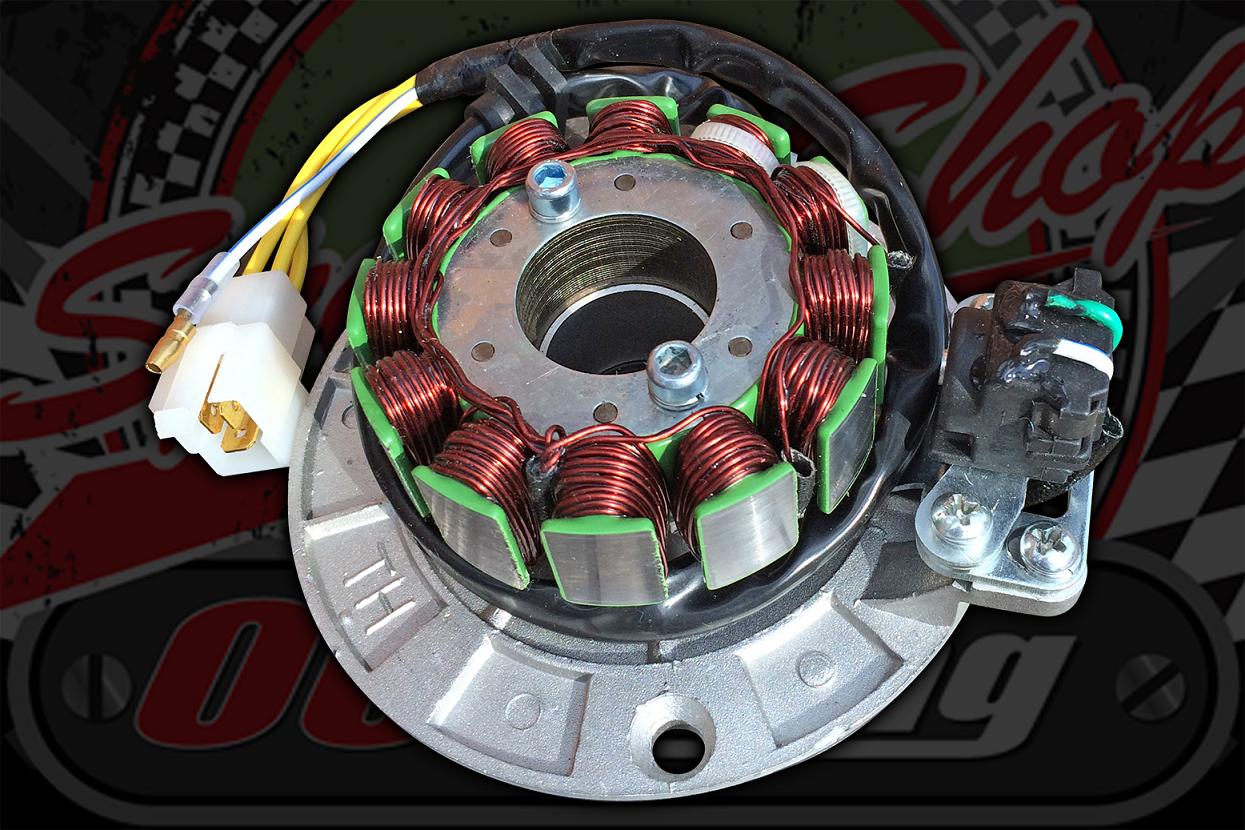

SS3+ Stator plate, Generator coils and pickup set.

Fits the 3 Phase SS3 system which fits most small engines.

Will require you to run this through our SS3 100W Reg/Rec to avoid damage to your other electricals

You will be required to set the pick up distance when installing the kit. a gap of 0.8mm is ideal. Ensure you tighten screws before first use.

Kit includes:

  • Stator Plate
  • Gererator coils
  • pickup/trigger coil
  • Wiring with connectors to fit directly to existing SS3 Reg/Rec



Specifications:

  • 715g Weight overall
  • 115mm diameter overall
  • 75mm Diameter external core
  • 100W output (Through our reg/rec)



Wiring

3 x Yellow wires: output to Reg/Rec (pre plugged)

1 x White/Blue: Trigger (male bullet)



PLEASE NOTE

All these units are tested for performance before leaving the workshop



Product Code 9585
Condition New
Weight 0.75Kg
