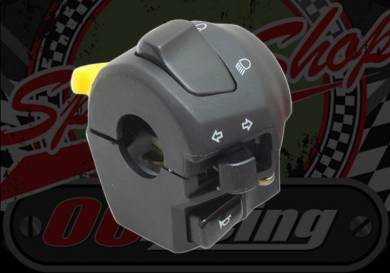

Switch gear. L/H. Suitable for ACE 50 & 125 option choke lever or not

Switch gear. L/H. Suitable for ACE 50 & 125 option choke lever or not
  • Click to enlarge

£25.00 £20.40
£17.00 ExVAT

Product Code: 9279

Switch gear. L/H. Suitable for ACE 50 & 125

Fits on the Standard width 7/8th"  (22mm) bars

Option for choke lever or no choke lever

No choke lever has a blanking plate

9 pin male plug yellow with Brown/white on bullett male conector

Functions:

  • High and low beam
  • Turn
  • Horn
  • Pass

Direct plug and play for Ace 50 & 125 with the jumper wire Brown/white wire

Brown/white = pass out
White = low beam
Yellow = high beam
Yellow/white = lights feed in
Light blue = flasher in
Black = left turn
Light green = right turn
Black/white = neg
Black/blue = horn feed (neg)

Product Code 9279
Condition New
Weight 0.3Kg
