Switch gear micro cnc flush fit, CNC black body to suit 7/8 bars

Switch gear micro cnc flush fit, CNC black body to suit 7/8 bars

We made these switches for the real custom builds.

To fit you need to drill out and file your bars to accommodate the switch body, you also need to drill and tap a 4mm hole for the retaining screw.

Body length 41mm

Height 17.7mm

Functions we now have 2 options

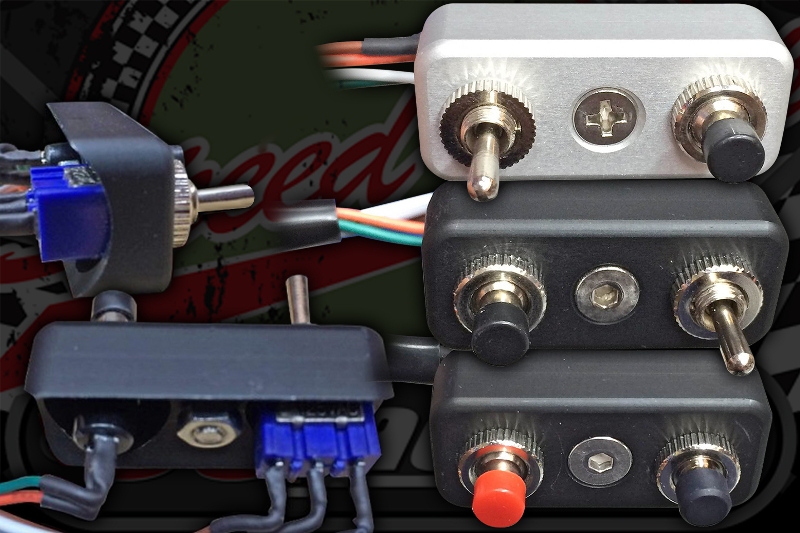

SWITCH 1 BLACK

3 way turn switch ON/OFF/ON can be used as turn or high/low beam

Push switch momentary ON/OFF horn "If you need latching switch see link here 0041A"

SWITCH 2 BLACK

Push switch momentary ON/OFF horn RED in photo

Push switch latching ON/OFF BLACK in photo

SWITCH 3 SILVER

3 way turn switch ON/OFF/ON can be used as turn or high/low beam

Push switch momentary ON/OFF horn "If you need latching switch see link here 0041A"

Wiring

1 meter of cable pre soildered to switch with outer sleeve

3 way

Grey feed in

Brown Switch out

White switch out

Above wiring depending on what way you mount the switch up will alter right or left turn.

Push switch momentary

Green power in

Orange power out

Switch latching

Green power in

White power out

Due to the light wiring you will need to run relays in the below applications.

Really needed if

Indicator bulbs are over 10W   “this would be 2 relays, one for each side to operate the flasher unit” but if you have 10W bulbs or LED you don’t need to do this.

Push switch will need a relay to operate a horn regardless.
