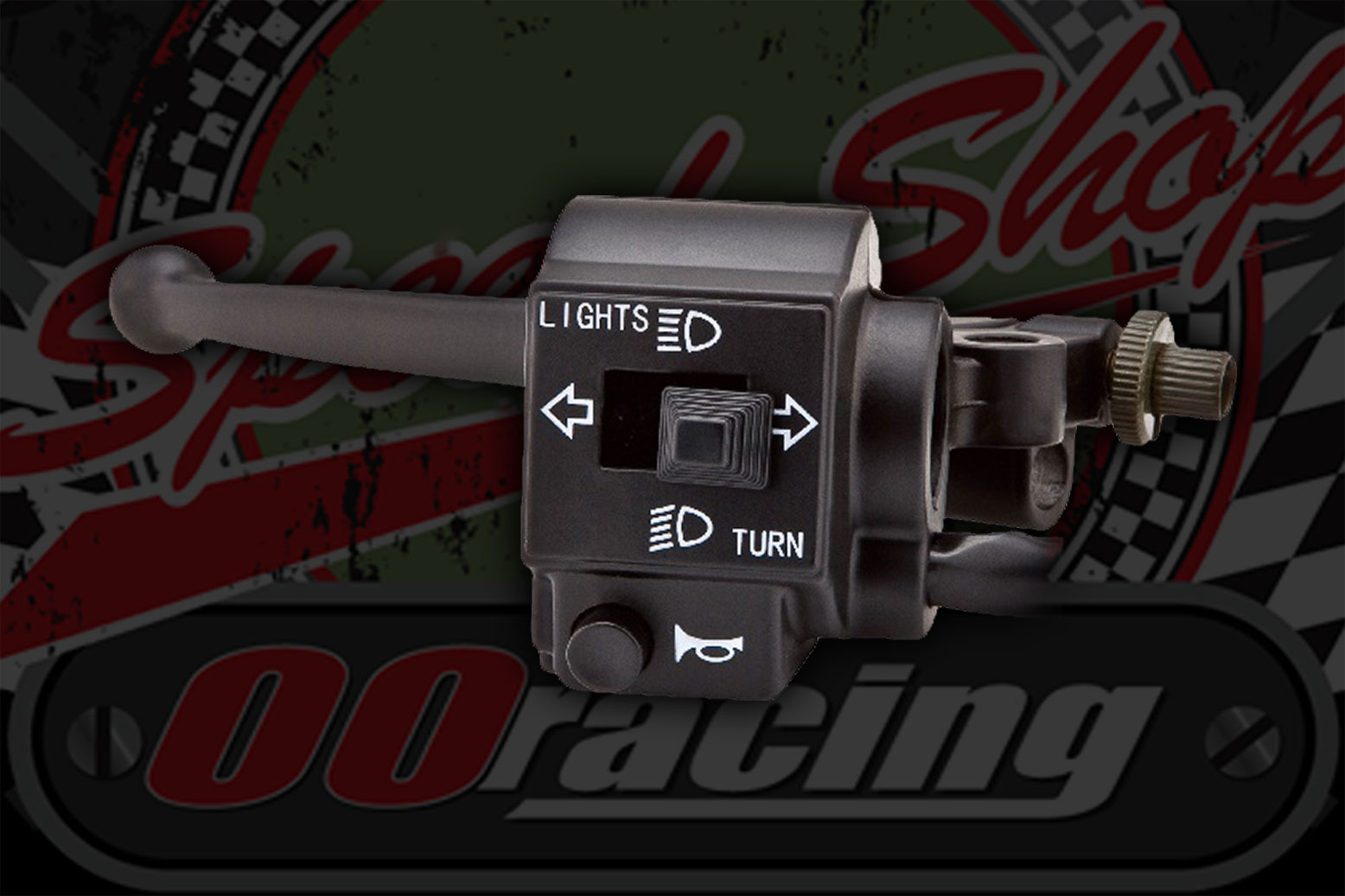

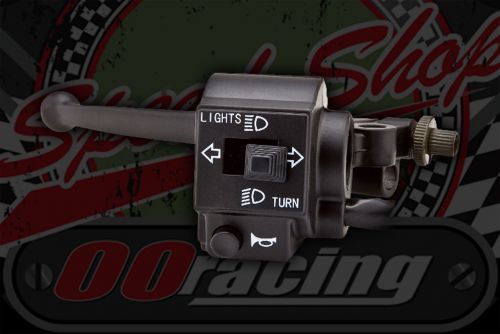

Switch gear universal L/H Early Madass style

Switch gear universal L/H Early Madass style
  • Click to enlarge

£19.99 £16.66 ExVAT


Product Code: 9980

Switch gear universal L/H Early Madass style

New Product from 26/05/2015

Kit includes:

  • Switchgear body with intergral Perch
  • Clutch Lever
  • Wiring Loom
  • Cable adjustor
  • Clutch switch
  • Grip



Functions:

  • Perch
  • Clutch Lever
  • TURN L/R
  • High/Low beam
  • Horn
  • 10mm Mirror mount
  • Clutch switch
  • Cable Adjustor



Specifications:

  • Fits standard width 7/8th"  (22mm) bars
  • 400mm cable with male bullet connectors
  • 160mm Length Clutch Lever
  • 40mm Wide Body
  • 60mm Deep body excluding perch



Wires:

  • Blue - High beam
  • Grey/White - Heald light (Connect to Grey/White on 9981)
  • White - Low beam
  • Orange - Flasher R/H
  • Grey - Flasher feed in +
  • Light Blue - Flasher L/H
  • Green - Ground
  • Light Green - Horn feed
  • Black - Clutch switch
  • Yellow/Green - Clutch switch



Product Code 9980
Condition New
Weight 0.45Kg
