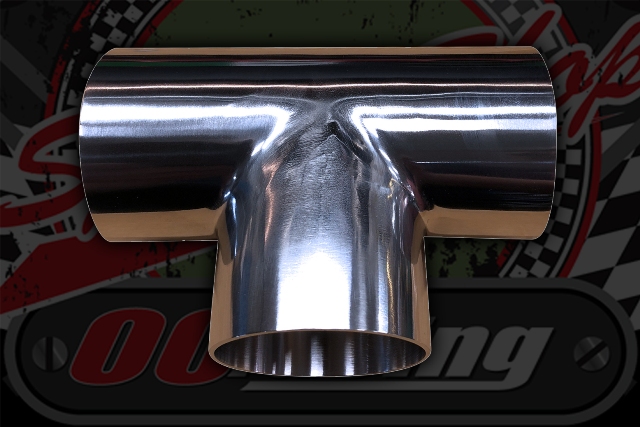

Stainless 304 exhaust/inlet pipe equal T OD 19mm - 76mm

Stainless 304 exhaust/inlet pipe equal T Piece

Please note for fluid transfer you may experience a small leak from the underside join, this just need a bit of reinforcing weld. Price reflected.

We do other bends, fittings and straight pipe in our main ooracing store (stainless bends)

Bends in degrees 30 45 60 90 180

T Pieces

Y Pieces

All sizes are OD (outside diameter)

Price per T Piece

Wall thickness 1.5mm upto 51mm and 2mm over

304 grade is nice to weld less brittle than the 316 grade.

There a nice tight bend with a clean cut so you can but weld close connections to get really tight turns

We decided to stock these really useful polished 304 grade bends for custom exhausts or inlets, and water pipe systems.

You can simply use insulation tap to hold your bends to the straight pipe to mock up your system, holds well so you can take it to your local Tig welder and get him or her to cut a 10mm strip out your tape to tack weld in 2 places before removing all the tape.

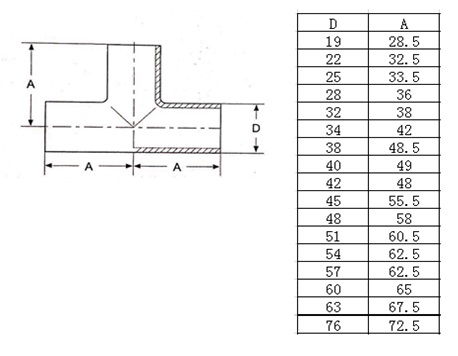

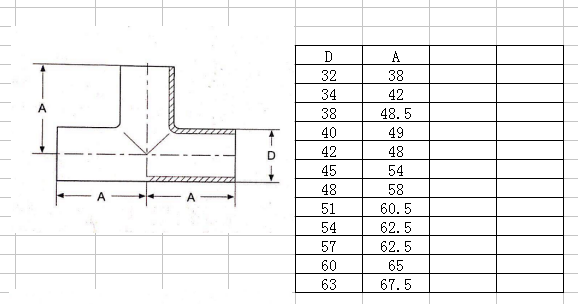

We stock below sizes OD (inch approx)

19mm 3/4"

22mm 7/8"

25mm 1"

28mm 1 1/8"

32mm 1 ¼”

34mm 1 11/32”

38mm 1 ½”

40mm 1 37/64”

42mm 1 21/32”

45mm 1 ¾”

48mm 1 7/8”

51mm 2”

54mm 2 1/18"

57mm 2 ¼”

60mm 2 3/8

63mm 2 ½”

76mm 2 63/64"
