Swing arm. +0. Alloy. Suitable for use with DAX style bikes

Swing arm. +0. Alloy. Suitable for use with DAX style bikes
  • Click to enlarge

£94.80 £79.00 ExVAT

Product Code: 1043

Swinging arm alloy suitable for DAX

Stock length arm with foot rest fittings and chain guard lugs

1 x arm kit

1 x Bolt kit

1 x CNC chain adjusters

1 x Brake rod and anchor kit ( no spring or second reation bolt to brake plate, photo to be up dated )

PLEASE NOTE:

  • Check the length of the rear wheel axle before ordering.
  • You will need to use your existing brake reaction spring with this kit
  • The brake rod may vary in appearance from the picture

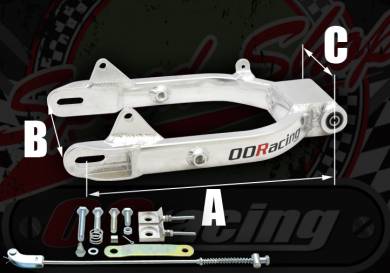

A = 310mm

B = 165mm

C = 96mm

The recommended axle length is 210mm.

With rubber swinging arm bushes we recommend that you tighten the pivot bolt up just to hold the arm central allowing the bushes to move on the pivot bolt, if over tightened it will rip up the rubber bushes.



Product Code 1043
Condition New
Weight 5Kg
