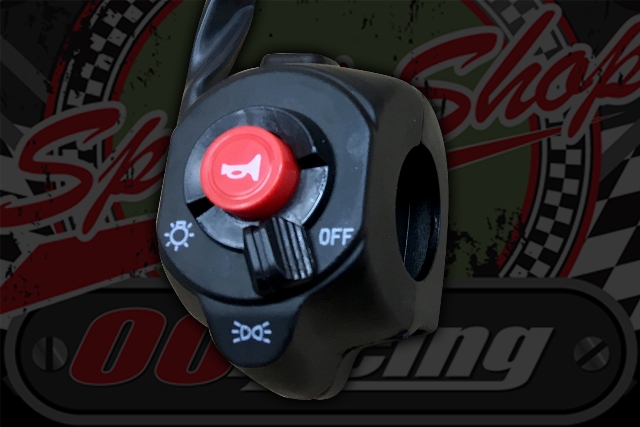

Switch gear. Rotary operation R/H Start or Horn Light OFF Pilot Main

Switch gear. Rotary operation R/H Start or Horn Light OFF Pilot Main
  • Click to enlarge

£9.59 £7.99 ExVAT

This product is currently out of stock


Product Code: 1621

Switch gear. Rotary operation R/H Start or Horn Light OFF Pilot Main

Uses the stock Chinese throttle tube fitted to monkey & dax part number 5741

Throttle cable type M10 x 1.25 pitch part number 7245

Cast alloy body

M8 R/H mirror thread

Light switch Rotary operation OFF PILOT MAIN

Horn or start button momentary

5 Wire 6 Pin female plug male pins

Yellow = Lights feed in +

Blue/White = Main lights out +

Yellow/Red = start switch has horn logo Neg or Poss switch

Green = Neg or poss in for horn switch

Brown = Tail light + out on Main and pilot

Product Code 1621
Condition New
Weight 0.2Kg
